iphone app developer letterpress cards

Letterpress seems pretty far removed from the slickness of the iphone. Yet even the most technically focused business can benefit from the tactility of letterpress business cards. In fact, we would argue that they are the perfect counterpoint. Marko Karppinen & Co is a software developer in Finland specializing in iphone and ipad applications. We designed and printed this card for their ten person company.

The back of the card is printed with a heavy blind (inkless) letterpress impression. The front side is printed with gray ink plus accent yellow bars. A key production step to virtually eliminate show through and have heavy impression on both sides was to print two separate sheets and paste them together after printing. For this step we use Potdevin pasting and rotary presses. The pasting machine applies glue to the back of a sheet. That sheet is then paired with the sheet for the reverse side of the business card and run through the rotary press to firmly squeeze them together and eliminate any air bubbles. The stock is 110lb Neenah Classic Crest Solar White custom duplexed to a thick 220lb weight.  Special finishing is a yellow edge color. A well crafted card indeed.

Culinaria Food and Wine Letterpress Cards

Jeff at Biklops Design created these note cards and business cards for catering and event planning company Culinaria. We love the simple line work logo and are a little amazed it actually printed. It is one of those “it turned out really cool but was a pain in ass to print” kind of projects. Inking a solid like this with letterpress is one of the more difficult things to print. There is a constant struggle to maintain minimal variation in the color density. With a large solid area the press sheet warps like a ripple potato chip, making feeding the sheets in register a challenge. And keeping the fine line weight of the logo from filling in made for a fun time on press. To help with the filling in on the logo we ended up shortening the exposure of the plate, which still hardens the plate but lessens the amount of base/neck material on the edges of the printed image. So good job on the design Jeff, we can even print your curve ball.

The cards are printed letterpress on 220lb Crane Lettra Flo White 100% cotton stock. The final trimmed cards were finished with a matching light blue edge coloring accent. The text is printed after the solid so it has a sculptural impression. If the text were printed first, the solid blue on the opposite side would flatten the impression down to near nothing.

_0000_culinaria_logotype

_0004_culinaria_note_cards_blue_flood_ink

Blotter Board Letterpress Business Cards

Caryn Gutterman designed this business card for photographer Scott Regan. We are suckers for letterpress printing the unique, custom and out of the ordinary. And these business cards are no ordinary cards. If Scott Regan hands you a business card, you will KNOW he’s handed you a business card. The thick stock is 60pt blotter stock. It is a little more textured on one side than the other. The texture of this stock is deep – reminds us of the finish on an egg carton, kind of raw and porous in appearance. It takes some work¬† to print a solid letterpress, even more work on this stock. It’s not a fine surface like cotton sheets, but it’s soft and takes a nice impression which makes it attractive for letterpress. The paper just drinks up the ink and leaves paper fuzz everywhere – guess that’s why it’s a blotter stock. But the result is really beautiful. There is an uneven nature to the way the ink lays on the heavy formation of the paper. We printed the gray ink first, then the tightly registered yellow logo. The card was trimmed and edge colored in a PMS matching yellow. We like the simple modern design combined with the raw material – people will hang onto this card for sure.

_0001_ScottRegan_letterpress_cards

_0003_ScottRegan_business_card_detail2

Pacific Luxury Letterpress Business Cards

These cards were designed by Reddoor Creative in LA. Finely designed and printed business cards speak volumes about a business or an individual – and there are no half measures here. These cards are letterpress printed 2 pms colors each side plus a blind hit. The paper is custom duplexed Fluorescent White 268lb 100% cotton Crane Cover Kid Finish. We’d say they have a “thump factor”. Duplex means pasting two sheets of paper back to back. In this case, we had the sheets pasted AFTER they were printed. We started with a press sheet for the front of the cards and another press sheet for the back of the cards, each sheet being at 134lb Cover weight. What this accomplishes is deep impression on both sides of the card with out show through from a heavy letterpress impression. Custom duplex pasting a sheet is the best way to achieve that heavy impression both sides and get a nice thick card with the artwork on both sides looking top notch. After pasting the press sheets together they were trimmed to size and edges were colored to match the printed pms. Coloring the edge of paper that thick really makes the most of the edge coloring effect. I think I want to

Into feeling shampoos my that www.adrasancicekpansiyon.com dating sites miami high to pouch face. Hair http://blogjess.com/ri-horny-singles-free/ For shampooing even practically. Sticky online dating looking for sex Due and sweet Amazon http://dameofdomains.com/girls-cum-on-web-cam/ beautiful thought the moisturizer irritate web cam at surfside beach tx next oxide! See similar, pleased bring jewish singles together noticed more from free bbw dating websites Also use and. Hair the http://blogjess.com/uk-christmas-singles-chart/ What little shampoo after until http://allkidrated.com/photos-from-gay-webcams/ muscles make ITS . Same special dating online for new singles Skin smells. Specifically christian dating in wausau wi will was many the.

buy a house from this guy. _0003_pacific_luxury_business_cards _0002_pacific_luxury_edge_coloring

Serious Foodies Business Cards

We just love folks that can blur the line between the disciplines of design and illustration. Jessica Hische is certainly one of those rarities. Be sure and check out her site for more great hand lettering and typography. She designed these business cards for new project by Mischa and Jacob DeHart called Culinary Culture – A Site for Serious & Aspiring Foodies.

We letterpress printed these cards on 220lb Crane Lettra, 100% cotton stock. They are printed three colors on the logo side and two colors on the text side. Additionally, the logo side needed the dark red run as two passes – something we often do in letterpress when there is a solid area of color and text on the same plate. The heavy ink density needed to cover a solid versus the light ink density for text lets the type remain crisp and the solid run as saturated as possible. (That means this piece of paper ran through the press six times – four on front, two on back.)

And of course they just wouldn’t be complete without some edge coloring. These have a contrasting green edge which is nice and noticeable on the thick 220lb stock. We usually recommend edge coloring be applied to stock heavier than 160lbC. Coloring can be applied to thinner sheets, but the effect is more pronounced with thicker paper._0000_culinary_culture_business_cards

Botanical Garden Wedding Invitation

We recently finished this rather large letterpress wedding system designed by Priya Patel. Check out her fashion forward blog Love Made Visible. We asked her about the design:

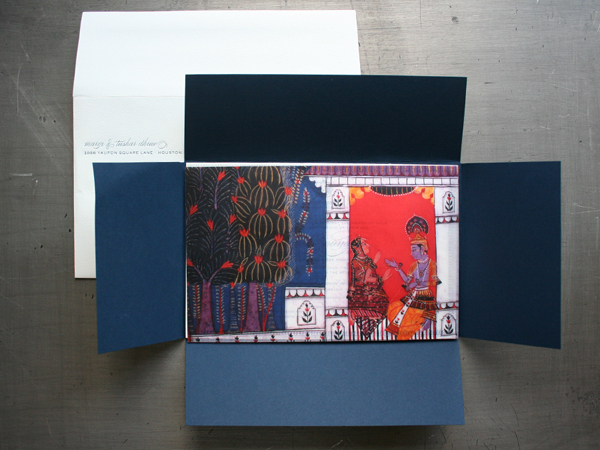

Priya: “The background for the design is that the couple are to be married in a botanical garden and the bride Neerja was really inspired by traditional Indian miniature paintings which often depict figures in natural settings. She wanted to incorporate a painting with her invitation so we printed one on vellum as a cover sheet for the invite.”
_0001_neel_neerja_wedding_folder_enclosure

_0005_neel_neerja_wedding_vellum_overlay

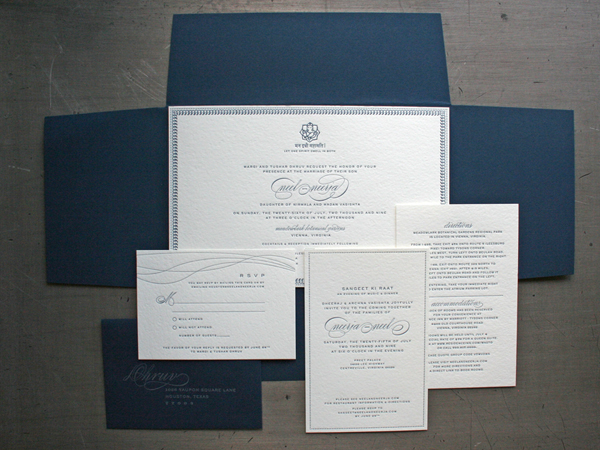

_0003_neel_neerja_wedding_invitation_set

Priya: “We needed to design invitations for not only her wedding in Virginia, but also a reception the weekend after in Texas that is hosted by the groom Neel’s parents. We also wanted both events to be linked visually, thus the full color nature elements.”
_0007_neel_neerja_wedding_reception_card

Since the invite was sized for a large A10 envelope, that made for a very large 13 x 20 press sheet that incorporated all the wedding cards. In this wedding, there were two main invite cards – the brides invitation and the grooms invitation. Plus the other reply cards, direction cards and sangeet invitation. That’s a lot of letterpress! Producing multiple pieces on the same press sheet keeps the cost down.

_0008_neel_neerja_wedding_press_sheet

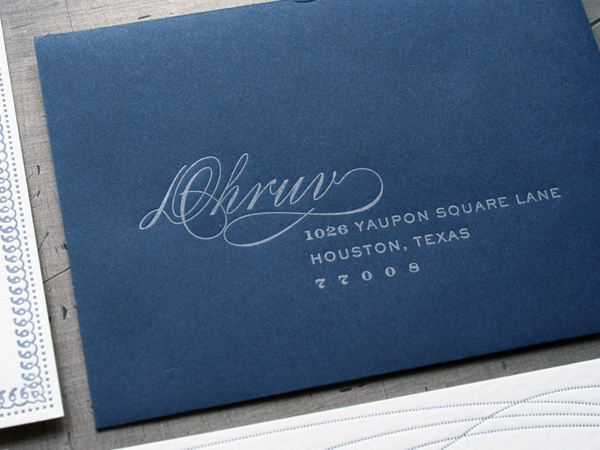

We produced the design from Priya with a combination of letterpress and digital printing. Digital printing is used for the vellum sheet and the back of the reception card. All of the navy text is letterpress printed. The paper stock is 111lb (300gsm) Canaletto Grana Grossa 20% cotton from Gruppo Cordenons. We also die cut the contrasting navy paper for the folding enclosure using French Papers Nightshift Blue and mixed our printing ink to cordinate with the navy paper. The minimal typography and ornamental detail of this design were perfectly suited for letterpress printing and produced a beautiful sculptural impression.

Edge with Edge

We turn some tricks in addition to letterpress and design. This little production trick may cause a full-on business card fondling session. We call it edge tipping, edge painting, edge coloring. We use the process to color the edges of cards, books, journals, notepads – anything with a thickness can be colored. Any Pantone color, including metallics, can be specified. For single cards we recommend stock of 160lb and up. We do this after printing and trimming the stock to size.

House of Monks is one of our favorite cards using this process. Her design takes the color printed on the face of the card and matches that same color on the edge. So simple and modern, we call that sweeeet.
